Sorry, the 1 Hour Fire Rated Metal Steel Access Panel Hinged is sold out.

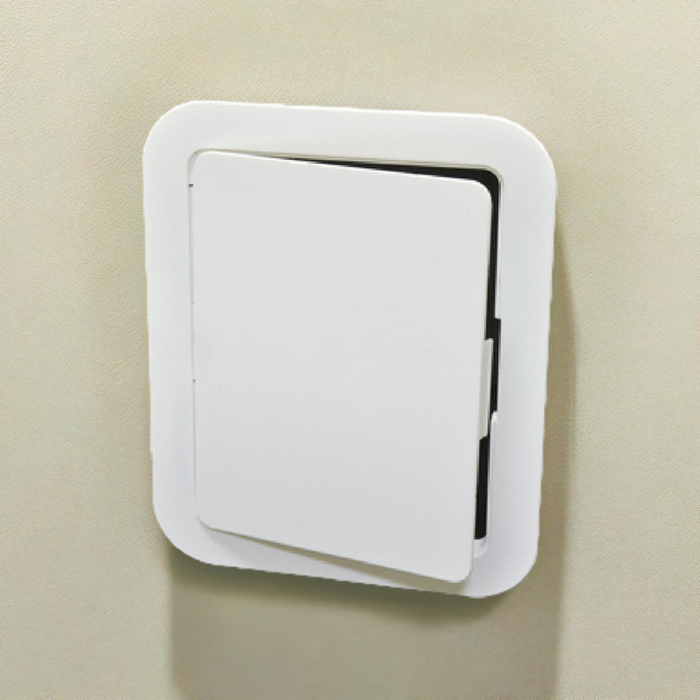

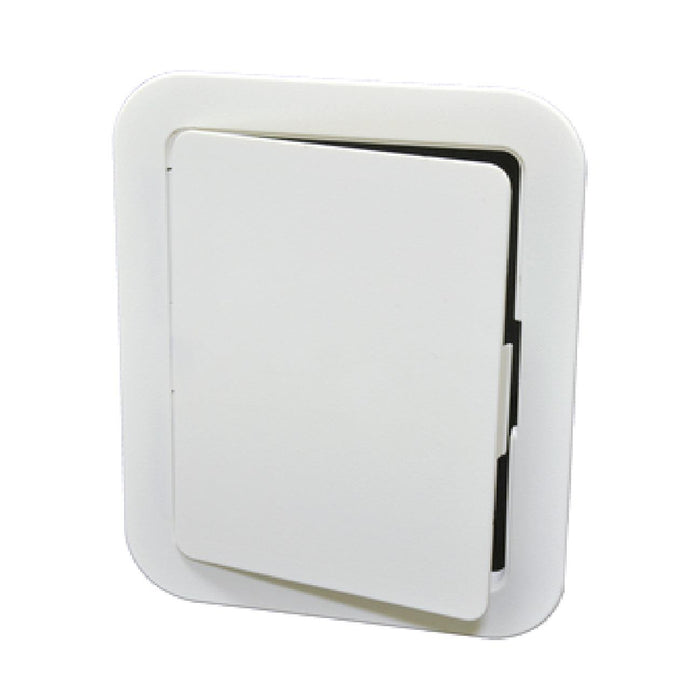

1 Hour Fire Rated Metal Access Panel Hinged Hatch White

Different sizes in drop down menu

1 Hour Fire Rated / Part L compliant
Very quick and easy to fit with picture frame to conceal cut out edges.
Simply effective way to gain access to concealed plumbing, valves, stopcocks, switches, valves, Flues controls and connections.
Made to save time and money compared to traditional joiner-made or steel access doors.
Access door is hinged with a slot latch
Meets gas safety for concealed boiler flue inspection requirements.

Dimension Specification

Aperture required 150mm x 150mm  ( Overall Dimension 185mm x 185mm ) Hinged Door

Aperture required 310mm x 310mm  ( Overall Dimension 335mm x 335mm ) Hinged Door

Aperture required 610mm x 610mm  ( Overall Dimension 640mm x 640mm ) Hinged Door


Fire rated loft access doors provide access through the ceiling into the ceiling void in situations where fire protection is required

Features & benefits

Purpose made loft door with proven performance
Superior access door compared to site fabricated panels
Provides up to 60 minutes fire protection and Class O surface spread of flame classification
Excellent aesthetic appearance
Factory finished and ready to fit straight from the box
Maintenance free, does not require painting
Hinged loft door design allows the use of a telescopic ladder if required
Incorporates secure twist operated catch assembly
Offered in picture frame and beaded frame
U value 0.82 W/m²k and 0.35 Part L specification available


Fire testing conducted by Warrington Fire Research Centre Ltd
Satisfies all NHBC Standards 2011 Edition to achieve min opening of 520mm.
Complies with Building Regulations part L 2010
Meets all relevant British Standards

Material & colour choice

The frame and door are fabricated in 1mm and 1.2mm Zintec electro-galvanised mild steel
The loft door is lined with a fire resistant sub-panel to enhance fire resistance and stability Polyester powder coating, lightly textured

Type Plumbing
Vendor Timloc
