Brick Weep Vents Wall Ventilation / Colour Options

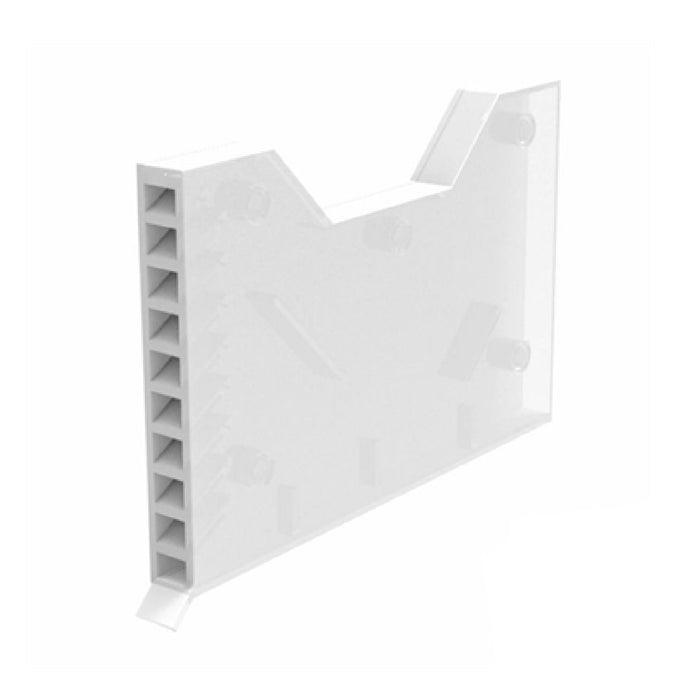

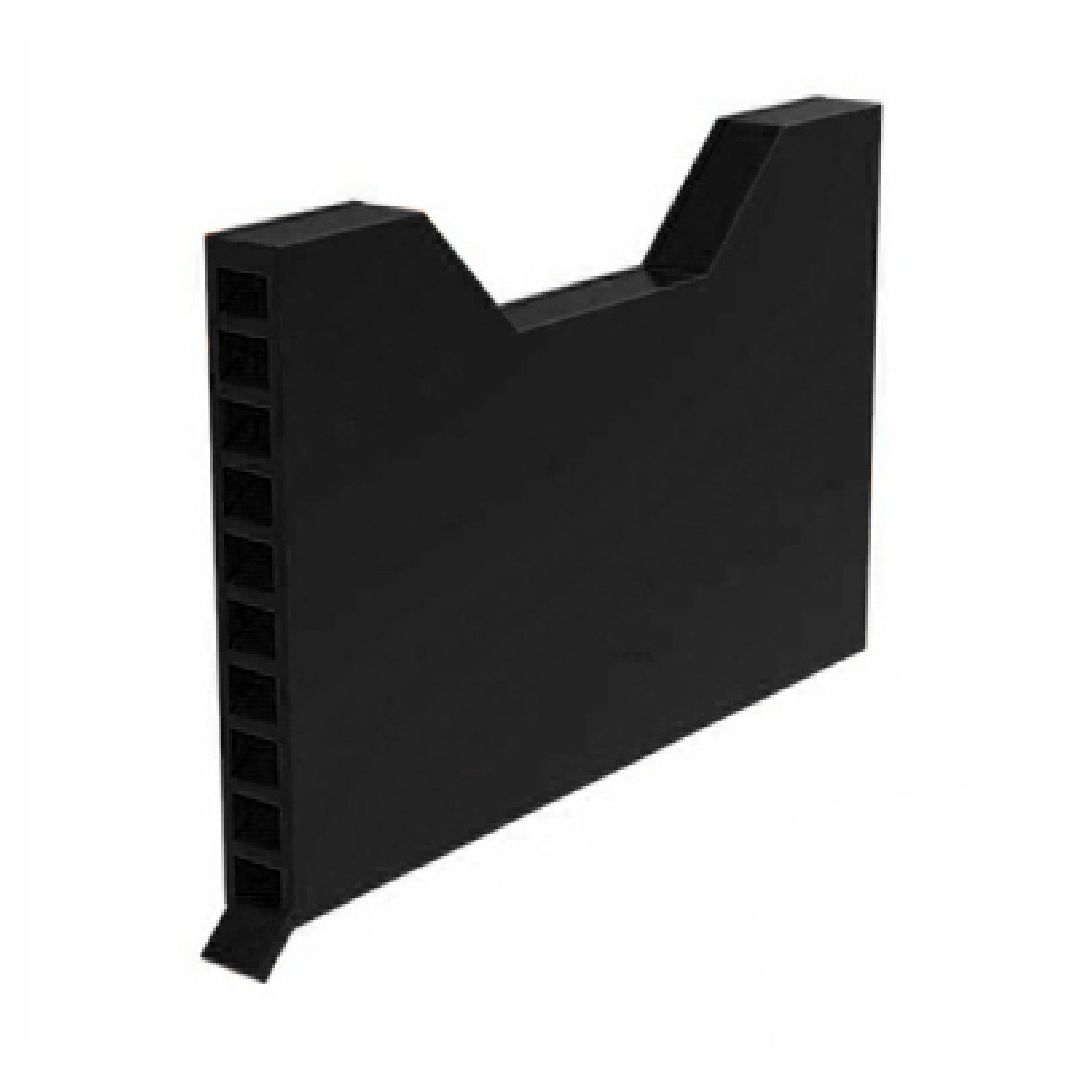

Manthorpe Weep Vents

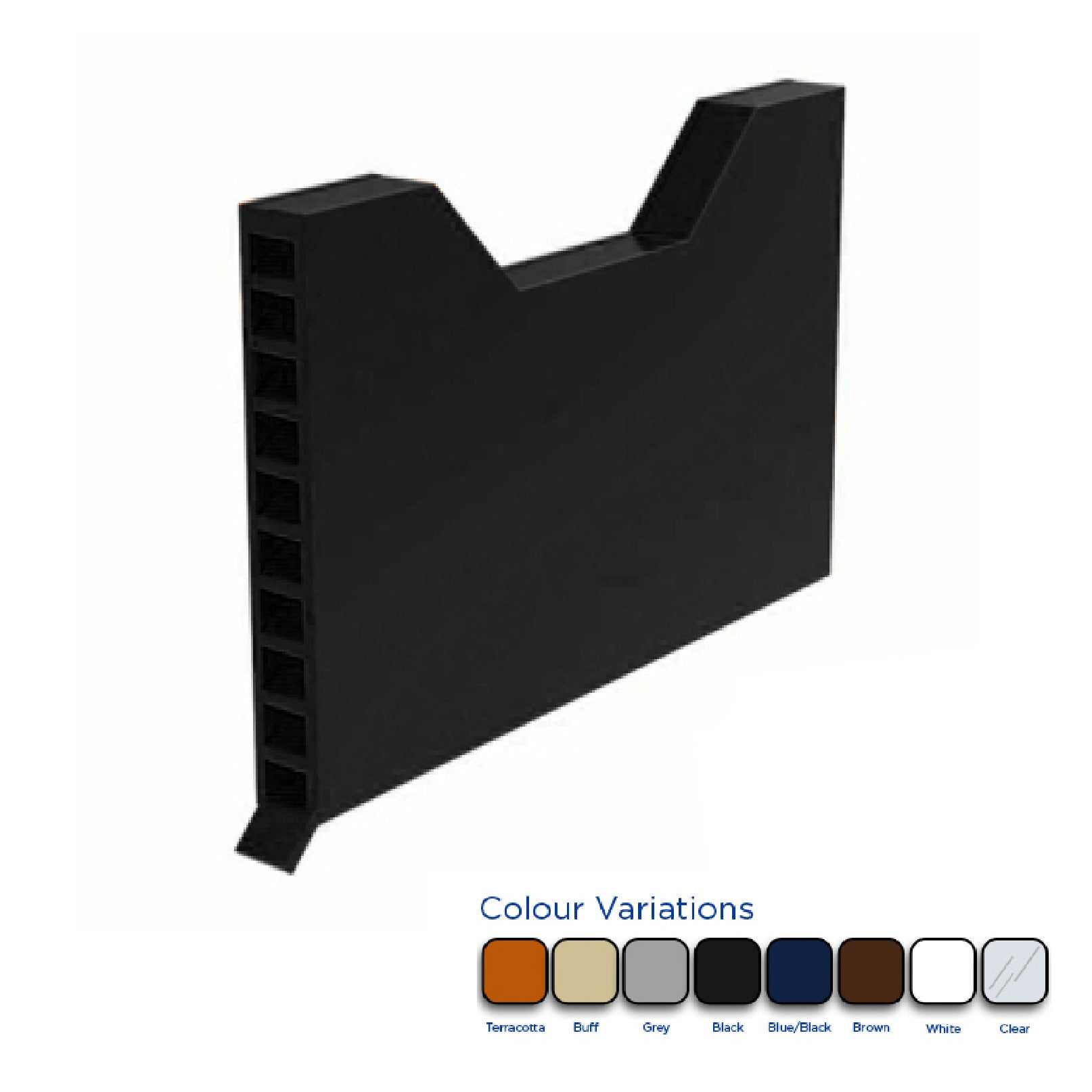

Available in a range of colours
Used for discharging water from external walls of lintels
Designed to fit in with blue engineering bricks
Suitable for commercial and domestic use.
Satisfies NHBC Standards
Manufactured to BS EN ISO 9001
Dimensions 100mm x 64mm x 10mm
The product can be slotted between two bricks and mortared into position. It provides an unobtrusive ventilation point for the cavity behind. The vent has a baffled grille to prevent the ingress of driving rain and wind whilst incorporating an insect grille and drip lip.
This grille is sized to keep out large insects but is wide enough that it will not be blocked by debris, paint or water droplets.
Any situation where water must be discharged from an external wall.
Ventilating cavity voids
At ground floor slab level
Within cavity tray systems

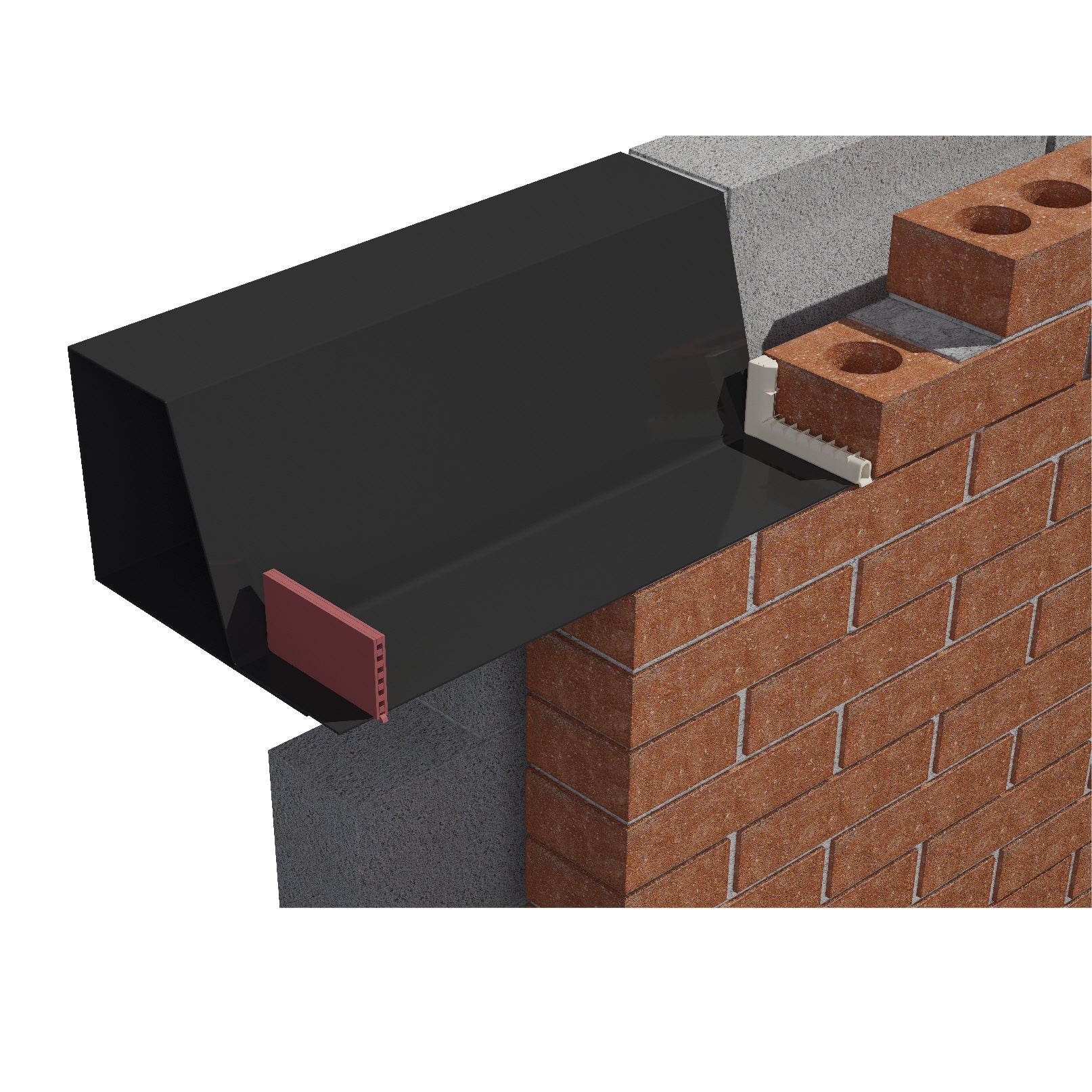

Over external lintels
Where a cavity must be ventilated
On external walls - 100mm or more in thickness - built from brick, block or stone.
Features & benefits
Purpose made and pre-formed to guarantee reliable discharge of water
Free vent area 165mm2
Satisfies all NHBC Standards 2008 Edition
Manufactured to BS EN ISO 9001 : 2008
Complies with all relevant Building Regulations
Meets all relevant British Standards
Material & colour choice
injection moulded in UV stabilised polypropylene
