Brick Tunnel Weep Vents Peep Low Profile / Colour Options
Tunnel Weep Vents / Low Profile Ventilation
Colours & Pack Sizes in Drop Down Menu

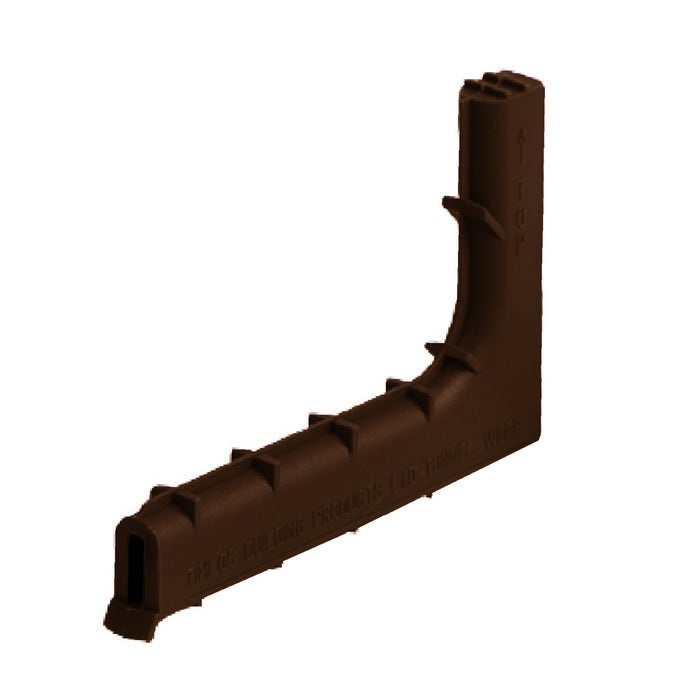

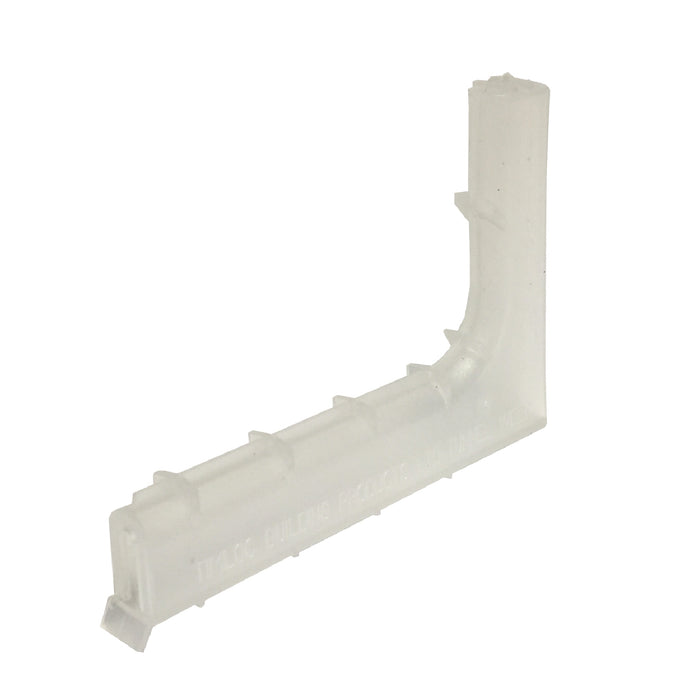

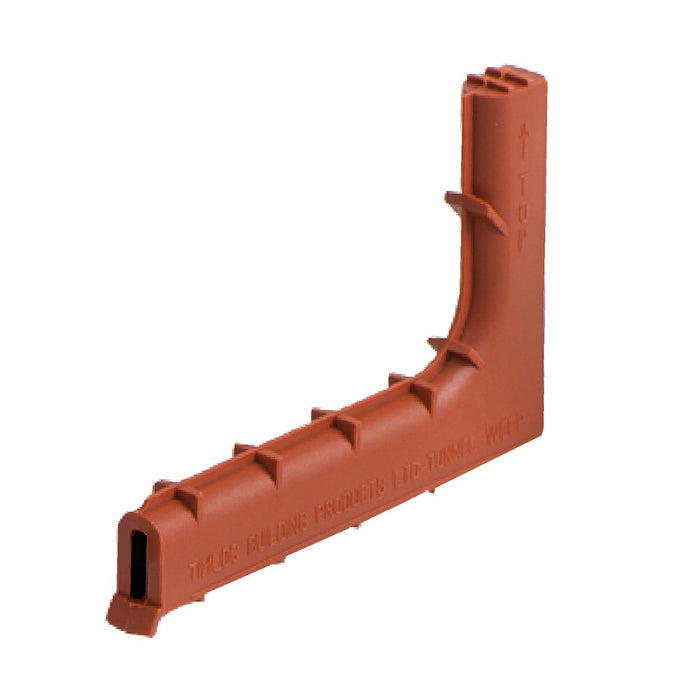

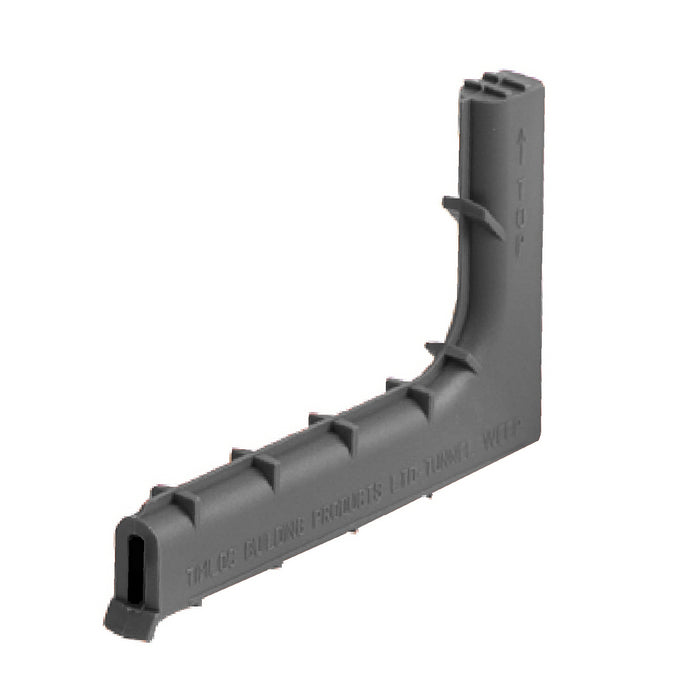

Low profile tunnel weep vents.
Suitable for commercial and domestic use.
Satisfies NHBC standards.
British made manufactured to BS EN ISO 9001.
Dimensions: 100mm x 64mm x 10mm.
The product can be slotted between two bricks and mortared into position.
It provides an unobtrusive ventilation point for the cavity behind.
Any situation where water must be discharged from an external wall, e.g:
At ground floor slab level

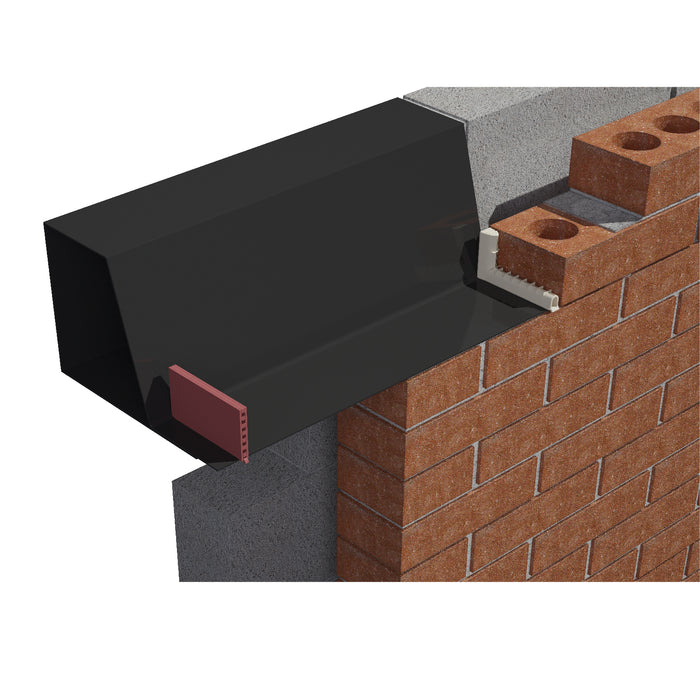

Within cavity tray systems
Over external lintels
Where a cavity must be ventilated
On external walls - 100mm or more in thickness - built from brick, block or stone
Features & benefits
Purpose made and pre-formed to guarantee reliable discharge of water
Less prone to inadvertent pointing-up than weep holes formed by simply leaving the perp joint open
Integral front grille prevents entry of large nest building insects into the cavity when using product 1143
4mm wide front aperture prevents entry of large nest building insects into the cavity when using product TW1

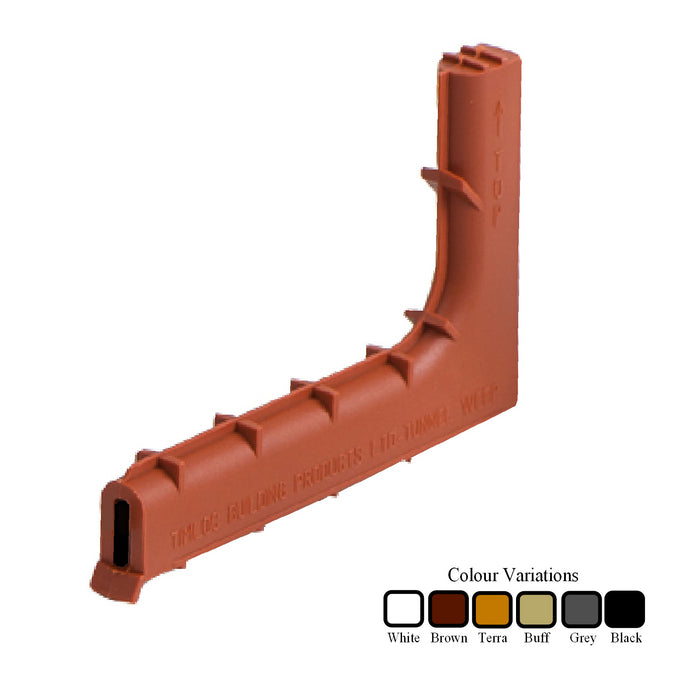

Range of colours to blend with brick or mortar colour (products 1143 and TW1 only)
Satisfies all NHBC Standards 2006 Edition
Manufactured to BS EN ISO 9001 : 2000
Complies with all relevant Building Regulations
Meets all relevant British Standards
